HCH 6205 ZZ Ball Bearings

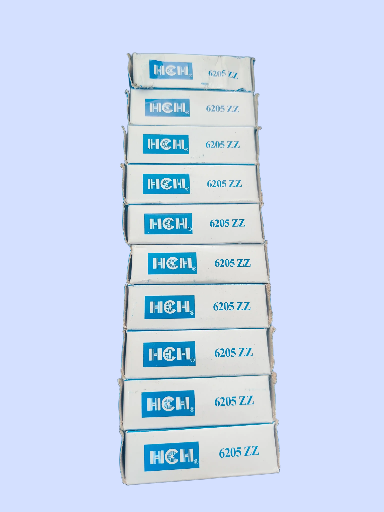

Pack of HCH 6205 ZZ bearings for industrial and automotive use
HCH 6205ZZ Deep Groove Ball Bearing
Brand: HCH
Model: 6205ZZ
Type: Deep Groove Ball Bearing (Double Shielded)
Availability: In Stock at New Jaydeep Bearing, Vapi
Product Overview
The HCH 6205ZZ is a high-quality deep groove ball bearing designed for general industrial applications requiring low noise, smooth rotation, and long service life. The double metal shields (ZZ) protect the bearing from dust and contaminants while retaining lubrication, making it ideal for electric motors, gearboxes, and conveyors.
Specifications
Type: Deep Groove Ball Bearing
Sealing Type: ZZ (Double Metal Shield)
Internal Clearance: C3 (optional available)
Material: High Carbon Chrome Steel (AISI 52100)
Cage Type: Pressed Steel Cage
Lubrication: Factory pre-lubricated with high-quality grease
Tolerance Class: ABEC-3 / ISO P6 equivalent
Features
✅ High-speed capability for electric motor applications
✅ Double-shielded protection from dust and contaminants
✅ Smooth, low-noise operation suitable for continuous use
✅ Long grease life and minimal maintenance requirement
✅ Reliable HCH brand performance trusted in industrial environments
Applications
Electric Motors & Pumps
Gearboxes and Transmission Units
Agricultural Machinery
Industrial Fans & Blowers
Conveyors & Textile Machines
Power Tools and Compressors
Perfect for industries in Vapi, Umbergaon, Sarigam, Silvassa, Valsad, Navsari, and Daman, where consistent bearing performance and reliability are essential.
Why Buy from New Jaydeep Bearing
100% genuine HCH bearings with reliable stock
Serving industrial hubs across South Gujarat and Daman
Competitive pricing with consistent quality assurance
Complete range of ball bearings, needle bearings, and linear bearings available
Parameter | Size (mm) |
|---|---|
Bore Diameter (d) | 25 mm |
Outer Diameter (D) | 52 mm |
Width (B) | 15 mm |
Dynamic Load Rating (Cr) | 14.0 kN |
Static Load Rating (Cor) | 7.8 kN |
Speed Limit (Grease) | 13,000 RPM |
Speed Limit (Oil) | 15,000 RPM |
Weight (Approx.) | 0.13 kg |
Bearing Number | Bore (mm) | Outer (mm) | Width (mm) | Type |
|---|
6200ZZ | 10 | 30 | 9 | Deep Groove Ball |
6201ZZ | 12 | 32 | 10 | Deep Groove Ball |
6202ZZ | 15 | 35 | 11 | Deep Groove Ball |
6203ZZ | 17 | 40 | 12 | Deep Groove Ball |
6204ZZ | 20 | 47 | 14 | Deep Groove Ball |
6205ZZ | 25 | 52 | 15 | Deep Groove Ball |
6206ZZ | 30 | 62 | 16 | Deep Groove Ball |
6207ZZ | 35 | 72 | 17 | Deep Groove Ball |
6208ZZ | 40 | 80 | 18 | Deep Groove Ball |
6209ZZ | 45 | 85 | 19 | Deep Groove Ball |
