About Linear Bearing :
Linear bearings are precision motion components engineered to enable smooth, accurate, and low-friction linear movement along a shaft or guide rail. Designed to carry loads while maintaining stability and alignment, they are widely used in industrial automation, CNC machines, robotics, and high-precision equipment. With durable construction and reliable performance, linear bearings ensure efficiency, accuracy, and long service life in demanding applications
Specification
Type: Standard, Flanged, Open, Closed, Adjustable, Double, etc.
Series: LM, LMK, LMF, LMH, SC, SK (UU & LUU variants).
Material: High-carbon chromium steel / Stainless steel.
Shaft Diameter Range: 3 mm to 100 mm (varies by model).
Load Capacity: Light to medium radial and axial loads, depending on size.
Motion: Smooth, low-friction linear travel along precision shafts or guide rails.
Design Features:
Integrated ball circulation system.
Sealed (UU type) for dust protection.
Open type for supported shafts.
Flanged type for direct mounting.
Applications: CNC machinery, automation systems, robotics, packaging machines, printing presses, and high-precision equipment.

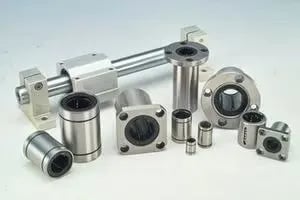

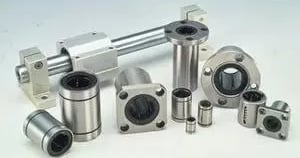

Range of Linear Bearings:
LM / LM-L / LME / LME-OP / LM-OP / LM-GA / LMES → Standard type, round bore, closed or open, available in short (L) and extended versions.
LMK / LMK-L / LMKC / LMKC-L / LMEK / LMEK-L / LMKP / LMKP-L / LMKC / LMKP → Square flange type, compact or long type.
LMF / LMF-L / LMFP / LMFP-L / LMEF / LMEF-L / LMFC / LMFC-L → Round flange type, standard and long type.
LMH / LMH-L / LMHC / LMHC-L / LMHP / LMHP-L → Oval flange type, standard and long type.
KH → Compact type for small shafts, light load applications.
ST / ST-B → Slide bush with cut, lightweight type.
SC / SC-L / SCV → Linear block with housing (compact or long type).
SBR / SBR-L → Supported linear bearing with rail, open type.
TBR / TBR-L → Supported linear bearing with shaft, open type, long version.
SK → Shaft support holder.
SHF → Shaft support with flange mounting.
OB → End support block for linear shafts.
Linear Bearing Series & Sizes

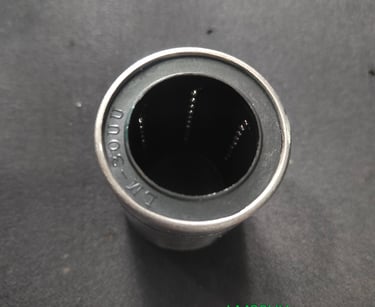

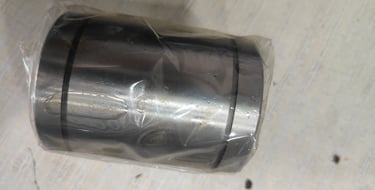

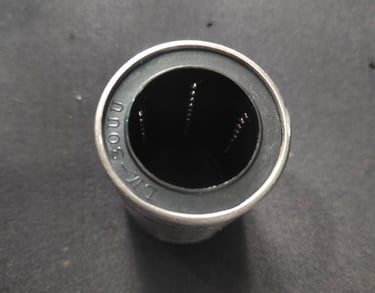

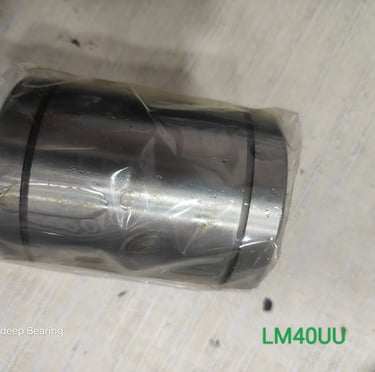

1. Standard Type (LM Series) Bearing
LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM10UU, LM12UU, LM13UU, LM16UU, LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM45UU, LM50UU, LM55UU, LM60UU, LM65UU, LM70UU, LM75UU, LM80UU, LM85UU, LM90UU, LM100UU
2. Long Type (LM-L Series) Bearing
LM6LUU, LM8LUU, LM10LUU, LM12LUU, LM13LUU, LM16LUU, LM20LUU, LM25LUU, LM30LUU, LM35LUU, LM40LUU, LM45LUU, LM50LUU, LM55LUU, LM60LUU, LM65LUU, LM70LUU, LM75LUU, LM80LUU, LM85LUU, LM90LUU, LM100LUU
3. European Standard (LME Series) Bearing
LME5UU, LME6UU, LME8UU, LME10UU, LME12UU, LME16UU, LME20UU, LME25UU, LME30UU, LME35UU, LME40UU, LME45UU, LME50UU, LME55UU, LME60UU, LME65UU, LME70UU, LME80UU
4. Open / Adjustable Bearings
LME-OP, LM-OP, LM-GA, LMES
5. Square Flange (LMK Series) Linear Bearing
LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU
LMK-L (Long Type): LMK6LUU, LMK8LUU, LMK10LUU, LMK12LUU, LMK16LUU, LMK20LUU, LMK25LUU, LMK30LUU, LMK35LUU, LMK40LUU, LMK50LUU, LMK60LUU
6. Round Flange (LMF Series) Linear Bearing
LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU
LMF-L (Long Type): LMF6LUU, LMF8LUU, LMF10LUU, LMF12LUU, LMF16LUU, LMF20LUU, LMF25LUU, LMF30LUU, LMF35LUU, LMF40LUU, LMF50LUU, LMF60LUU
7. Oval Flange (LMH Series) Linear Bearing
LMH6UU, LMH8UU, LMH10UU, LMH12UU, LMH16UU, LMH20UU, LMH25UU, LMH30UU, LMH35UU, LMH40UU, LMH50UU
LMH-L (Long Type): LMH6LUU, LMH8LUU, LMH10LUU, LMH12LUU, LMH16LUU, LMH20LUU, LMH25LUU, LMH30LUU, LMH35LUU, LMH40LUU, LMH50LUU
8. Compact / Adjustable Linear Bearing
LM-GA, LMES
9. Linear Block with Housing (SC Series) Linear Bearing
SC8UU, SC10UU, SC12UU, SC16UU, SC20UU, SC25UU, SC30UU, SC35UU, SC40UU, SC45UU, SC50UU, SC60UU
SC-L (Long Type): SC8LUU, SC10LUU, SC12LUU, SC16LUU, SC20LUU, SC25LUU, SC30LUU, SC35LUU, SC40LUU, SC45LUU, SC50LUU, SC60LUU
SCV Series: SCV8UU, SCV10UU, SCV12UU, SCV16UU, SCV20UU, SCV25UU, SCV30UU, SCV35UU, SCV40UU, SCV45UU, SCV50UU, SCV60UU
10. Supported Linear Bearings (SBR Series) Linear Bearing
SBR8UU, SBR10UU, SBR12UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR45UU, SBR50UU
SBR-L (Long Type): SBR8LUU, SBR10LUU, SBR12LUU, SBR16LUU, SBR20LUU, SBR25LUU, SBR30LUU, SBR35LUU, SBR40LUU, SBR45LUU, SBR50LUU
11. Wide Linear Bearing Blocks (TBR Series) Linear Bearing
TBR16UU, TBR20UU, TBR25UU, TBR30UU, TBR35UU, TBR40UU, TBR45UU, TBR50UU
TBR-L (Long Type): TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU, TBR35LUU, TBR40LUU, TBR45LUU, TBR50LUU
12. Shaft Support Holders (SK Series) Linear Shaft Support
SK8, SK10, SK12, SK15, SK20, SK25, SK30, SK35, SK40, SK45, SK50
13. Shaft Support with Flange (SHF Series)
SHF8UU, SHF10UU, SHF12UU, SHF15UU, SHF20UU, SHF25UU, SHF30UU, SHF35UU, SHF40UU, SHF45UU, SHF50UU
14. End Support Block (OB Series)
OB8UU, OB10UU, OB12UU, OB15UU, OB20UU, OB25UU, OB30UU, OB35UU, OB40UU, OB45UU, OB50UU
